What a High Voltage Power Transformer Really Is

A high voltage power transformer is a static electrical device that transfers electrical energy between two or more circuits through electromagnetic induction, stepping voltage up for transmission or down for actual use. In real procurement terms, the category covers units that receive high voltage — commonly 10 kV, 35 kV and above — and deliver a safe, usable medium or low voltage to factories, commercial buildings, mining sites, data centres, renewable energy plants and utility substations.

Unlike a small consumer adapter, a high voltage power transformer is built for continuous duty, high thermal stress and decades of service. That is why buyers evaluate it on losses, insulation class, cooling method, impedance, protection level and manufacturer traceability rather than on appearance alone.

How It Works: The Basics in Plain Language

Two or more windings are wound around a magnetic core. Alternating current in the primary winding creates a changing magnetic flux in the core, which induces a voltage in the secondary winding. The ratio of turns between windings determines the voltage ratio. Because there are no moving parts in the energy-conversion path, efficiency is high — but every watt of loss still becomes heat, and managing that heat is the core engineering challenge.

• Core: laminated silicon steel, wound core oramorphous alloy, chosen for low no-load (iron) loss
• Windings: copper or aluminium conductors, insulated by oil-impregnated paper or cast resin
• Insulation system: oil and paper for oil-immersed units; epoxy resin for dry-type units
• Cooling: natural air, forced air, oil natural air natural (ONAN) or oil natural air forced (ONAF)
• Protection and control: tap changer, bushings, breathers, temperature sensors, Buchholz relay

The Main Types You Will Be Quoted On

Suppliers normally quote from several families. Knowing which family fits your site is the fastest way to avoid overpaying.

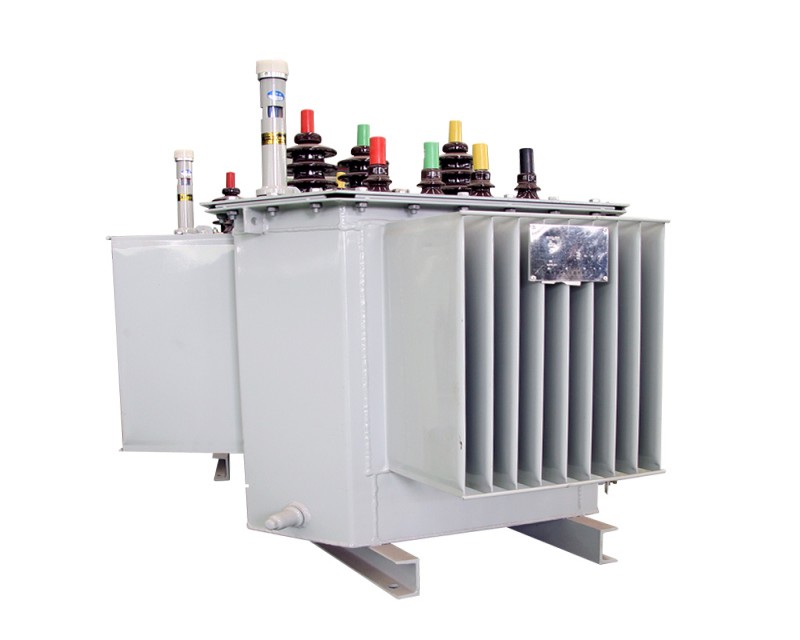

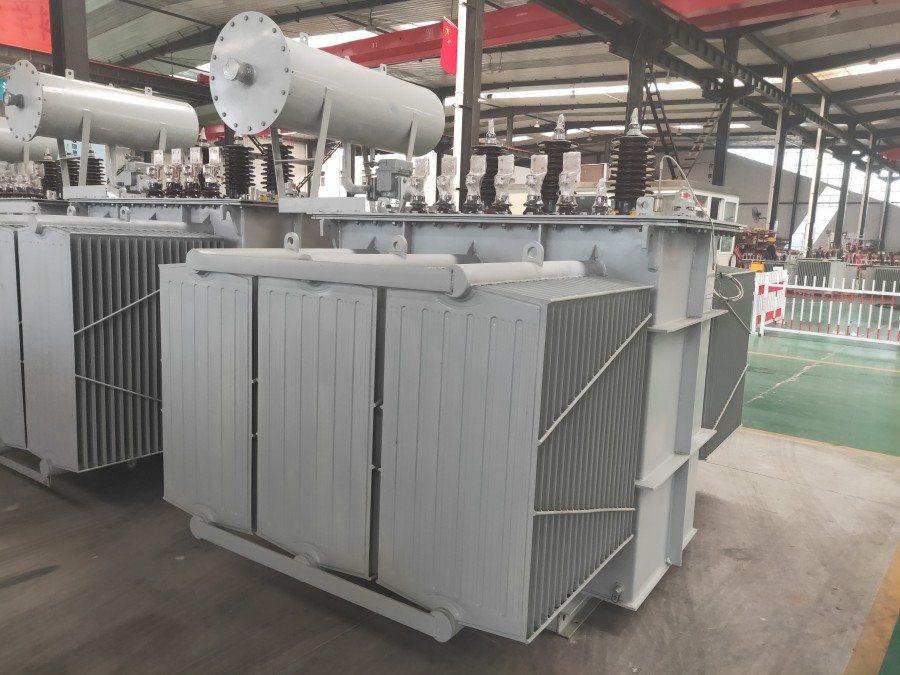

• Oil-immersed transformers: S11, S13, S20 and S22 series, widely used outdoors and in substation rooms; high capacity, strong overload capability and the best cost per kVA.

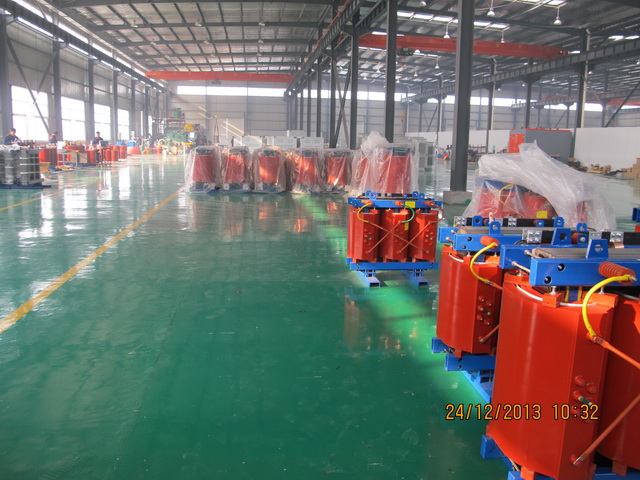

• Dry-type transformers: SCB10, SCB13, SCB14 and SCB18 series, cast-resin design with no oil, preferred indoors, in hospitals, tunnels, high-rise buildings and other fire-sensitive locations.
• Amorphous alloy transformers: SH15 and SCBH15 series, using amorphous metal cores to cut no-load loss dramatically — a strong fit where the unit runs lightly loaded for long periods.
• Special-purpose units: mining transformers, rectifier transformers, lightning arrester transformers, capacity-regulating transformers, load tap changing transformers and fully custom special transformers.
• Integrated solutions: 35 kV and below preassembled substations, European-style and American-style compact substations, and high/low voltage switchgear.

Key Parameters to Check Before You Sign

The data plate tells the whole story. Compare these values across every quotation, because a lower price often hides a weaker specification.

• Rated capacity: from 30 kVA up to 6300 kVA in standard ranges — match it to real load plus a sensible growth margin
• Voltage ratio and tap range: primary and secondary voltage plus tap steps for grid fluctuation
• No-load loss and load loss: the two numbers that decide your electricity bill for the next 20 years
• Impedance voltage: affects short-circuit current and protection coordination
• Insulation class and temperature rise: defines how hard the unit can be pushed
• Cooling method and protection degree: ONAN, ONAF, IP20, IP23 and similar ratings
• Standards and documentation: national standard compliance, manual, inspection report and test certificate

Common Traps When Buying a High Voltage Power Transformer

Most bad purchases come from the same handful of mistakes.

• Comparing price only, not losses. A cheap unit with high no-load loss can cost more in energy than the price difference within two to three years.
• Oversizing capacity. Buying one size up "for safety" raises no-load loss permanently; proper load calculation is cheaper.
• Ignoring the installation environment. Oil-immersed equipment indoors or dry-type equipment in a dusty outdoor yard both create avoidable problems.
• Accepting vague documentation. Without routine and type test reports, warranty claims become difficult.
• Buying through multiple middlemen. Each layer adds margin and slows down technical communication.

Where the Savings Come From with a Factory-Direct Supplier

Buying straight from a manufacturer removes trading-company mark-ups and, more importantly, shortens the technical loop. Requirements go to the engineers who actually build the unit, drawings come back faster, and special designs — a non-standard voltage ratio, an unusual tap arrangement, a rectifier or mining duty — are handled without an intermediary guessing at the specification.

As a transformer manufacturer, Runsheng Transformer Co., Ltd. produces S22, S20, S11 and S13 oil-immersed transformers, SCB13/SCB14/SCB18 dry-type transformers, SH15 amorphous alloy transformers, S13 series 10 kV three-dimensional magnetic path wound core transformers, D10 series single-phase wound core transformers, plus mining, rectifier, capacity-regulating and custom special transformers. Factory-direct pricing keeps the budget realistic while the specification stays intact.

Installation, Operation and Long-Term Care

A high voltage power transformer is a long-life asset, and most of its service life is decided after it leaves the factory.

• Keep adequate clearance and ventilation; heat is the main enemy of insulation
• Monitor oil level, oil temperature, silica gel colour and bushing condition on oil-immersed units
• Keep dry-type windings clean and free of dust build-up to prevent surface tracking
• Check tap changer position and tighten connections during scheduled shutdowns
• Record loading history so an upgrade decision is based on data, not guesswork

All products ship with manuals, inspection reports, test certificates and lifelong quality tracking — documentation that matters at every maintenance interval.

Choosing the Right Partner

The right high voltage power transformer is the one that matches your load profile, environment and budget over the full service life, not just the day of purchase. A supplier who can quote oil-immersed, dry-type, amorphous alloy and custom special transformers from one production base, and who stands behind every unit with verifiable test data, removes most of the risk from that decision.
