Introduction: What Is an 11kv Transformer?

An 11kv transformer is a critical component in medium-voltage power distribution systems, designed to step down or step up voltage at the 11 kV level. It serves as the interface between the utility grid and end-user equipment, ensuring safe and efficient electricity delivery for industrial, commercial, and residential applications. Understanding the basics of an 11kv transformer helps buyers make informed decisions, especially when sourcing from overseas manufacturers.

Common Types of 11kv Transformers

Based on cooling and insulation methods, 11kv transformers are mainly classified into oil-immersed, dry-type, and amorphous alloy types. Each has distinct advantages and suitable applications.

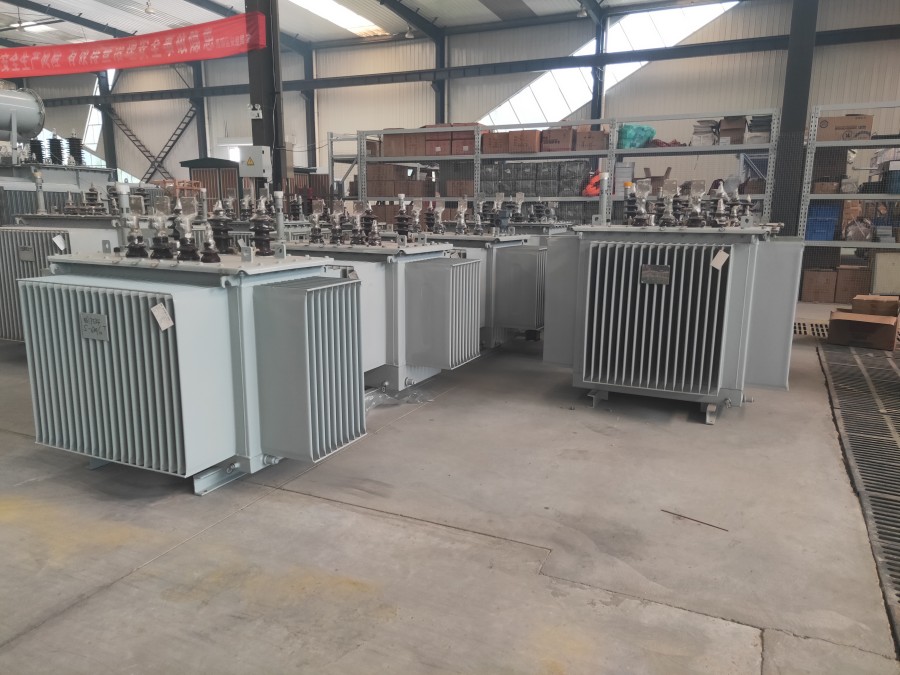

• Oil-immersed transformers: S11, S13, S20, S22 series. These are widely used for outdoor distribution due to their high efficiency and low loss. The S13 and S20 series offer even lower no-load losses, making them ideal for energy-saving projects.

• Dry-type transformers: SCB10, SCB13, SCB14, SCB18 series. These are preferred for indoor installations, such as hospitals, shopping malls, and high-rise buildings, because they are fire-resistant and environmentally friendly.

• Amorphous alloy transformers: SH15, SCBH15 series. These use amorphous alloy cores to dramatically reduce no-load losses, perfect for renewable energy and grid applications where energy efficiency is a priority.

Key Technical Parameters of 11kv Transformers

When selecting an 11kv transformer, several parameters must be considered to match your specific load requirements:

• Capacity: Typically ranges from 30 kVA to 6300 kVA. The right capacity depends on total load demand and future expansion plans.

• Voltage class: 11 kV primary, with secondary voltages like 0.4 kV, 6.6 kV, etc., customized per project.

• Cooling method: ONAN (oil-immersed) or AN/AF (dry-type) for different environments.

• Impedance and losses: Lower losses mean higher efficiency and long-term cost savings.

• Tap changer: Off-circuit or on-load tap changing to maintain stable output voltage.

Typical Applications of 11kv Transformers

11kv transformers are ubiquitous in power distribution networks. Common applications include:

• Industrial plants and manufacturing facilities

• Commercial buildings, data centers, and hospitals

• Mining operations and heavy machinery

• Renewable energy systems (solar and wind farms)

• Preassembled substations and compact substations

How to Choose a Reliable 11kv Transformer Supplier

Purchasing an 11kv transformer is a significant investment. To avoid pitfalls, focus on these factors:

• Factory-direct pricing: Buying directly from a manufacturer eliminates middlemen markups, often saving 20-30%.

• Quality certifications: Ensure the supplier complies with national standards and provides type test reports.

• After-sales support: Look for lifelong quality tracking and readily available spare parts.

• Experience and reputation: A manufacturer with a long history and diverse product range is more trustworthy.

As a leading transformer manufacturer, Runsheng Transformer Co., Ltd. maintains a comprehensive inventory with assured quality, offering oil-immersed transformers at factory-direct prices. All products comply with national standards and are delivered with manuals, inspection reports, test certificates, and lifelong quality tracking. Their product line includes S22, S20, S11, S13 oil-immersed transformers, SCB13, SCB14, SCB18 dry-type transformers, SH15 amorphous alloy transformers, and custom special transformers for mining, rectifier, and renewable energy applications.

Common Pitfalls When Buying an 11kv Transformer

Many buyers fall into traps that lead to higher costs or operational failures. Watch out for:

• Unrealistically low prices: Often a sign of inferior materials or missing certifications.

• No test certificates: Always demand routine and type test reports.

• Lack of customization: Your load profile may require specific impedance or tap settings.

• Poor after-sales service: Without lifelong tracking, troubleshooting becomes costly.

Conclusion: Get the Best Value for Your 11kv Transformer

An 11kv transformer is a long-term asset that directly impacts your operational efficiency and energy costs. By understanding the types, parameters, and sourcing strategies, you can secure a high-quality unit at a competitive price. Partnering with a reputable manufacturer like Runsheng ensures you receive factory-direct pricing, full documentation, and reliable support. For inquiries or custom requirements, contact us today:
