Oil Immersed Distribution Transformer
Item:S11 Oil Immersed Distribution Transformer
①Vacuum filter filling of transformer oil
②Stable electrical performance
③High dynamic stability
④Good thermal stability
⑤High overload capacity
⑥Long service life
-
Free local delivery -
many years power supply warranty -
Lifetime Customer Support
The S11 Oil Immersed Distribution Transformer is oil-immersed. The S-11-M series fully sealed oil-immersed power transformer has the advantages of low loss, low noise and high efficiency, which can achieve good energy saving effect and reduce pollution.
Our oil immersed distribution transformer rated capacity: 10kva 、25kva、 30kva、 35kva、 63kva、 80kva、 100kva 、125kva 、200kva、250kva、315kva、400kva、500kva、 630kva 、800kva、1000kva、1250kva、1600kva、2000kva、2500kva and so on.
Our transformers can be customized according to your requirements, you can provide us with Transformer Rated Capacity and Voltage.
Main Technical Parameters
Rated capacity (kVA) | Voltage combination and tap range | link group label | No-load loss (W) | load loss | No-load current(%)) | Short circuit impedance (%) | ||
High voltage (kV) | High voltage tap range (%) | Low voltage (kV) | ||||||
30 | 11 10.5 10 6.3 6 | ±5±2×2.5% | 0.4 0.69 | Yyn 0Dyn 11 | 100 | 630/600 | 2.3 | 4 |
50 | 130 | 910/870 | 2.0 | 4 | ||||
63 | 150 | 1090/1040 | 1.9 | 4 | ||||
80 | 180 | 1310/1250 | 1.9 | 4 | ||||
100 | 200 | 1580/1500 | 1.8 | 4 | ||||
125 | 240 | 1890/1800 | 1.7 | 4 | ||||
160 | 280 | 2310/2200 | 1.6 | 4 | ||||
200 | 340 | 2730/2600 | 1.5 | 4 | ||||
250 | 400 | 3200/3050 | 1.4 | 4 | ||||
315 | 480 | 3830/3650 | 1.4 | 4 | ||||
400 | 570 | 4520/4300 | 1.3 | 4 | ||||
500 | 680 | 5410/5150 | 1.2 | 4 | ||||
630 | 810 | 6200 | 1.1 | 4.5 | ||||
800 | 960 | 7500 | 1.0 | 4.5 | ||||
1000 | 1150 | 10300 | 1.0 | 4.5 | ||||
1250 | 1360 | 12000 | 0.9 | 4.5 | ||||
1600 | 1640 | 14500 | 0.8 | 4.5 | ||||
2000 | 1960 | 19800 | 0.8 | 5 | ||||
2500 | 2310 | 23000 | 0.7 | 5 | ||||

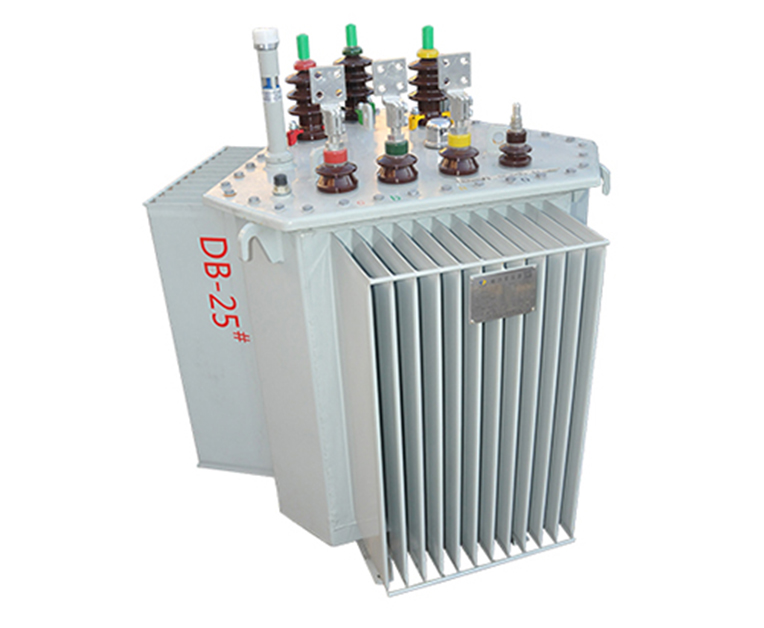

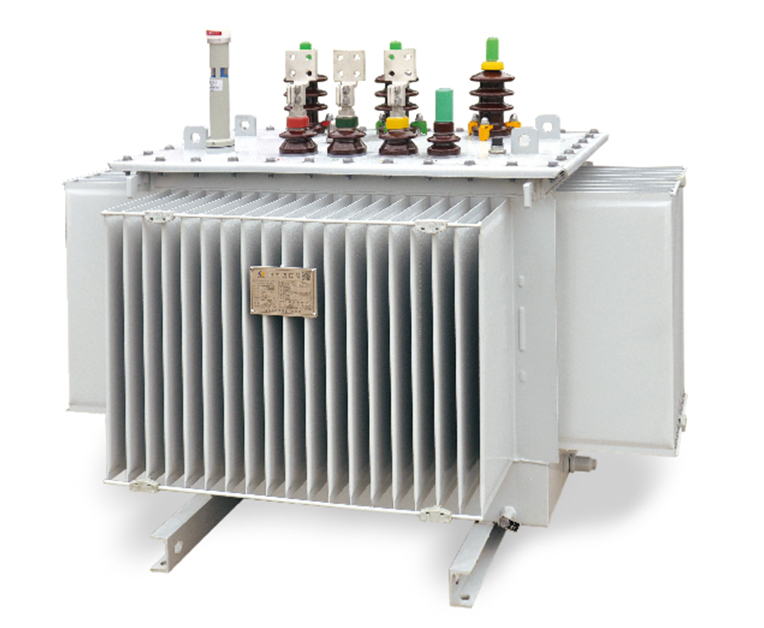

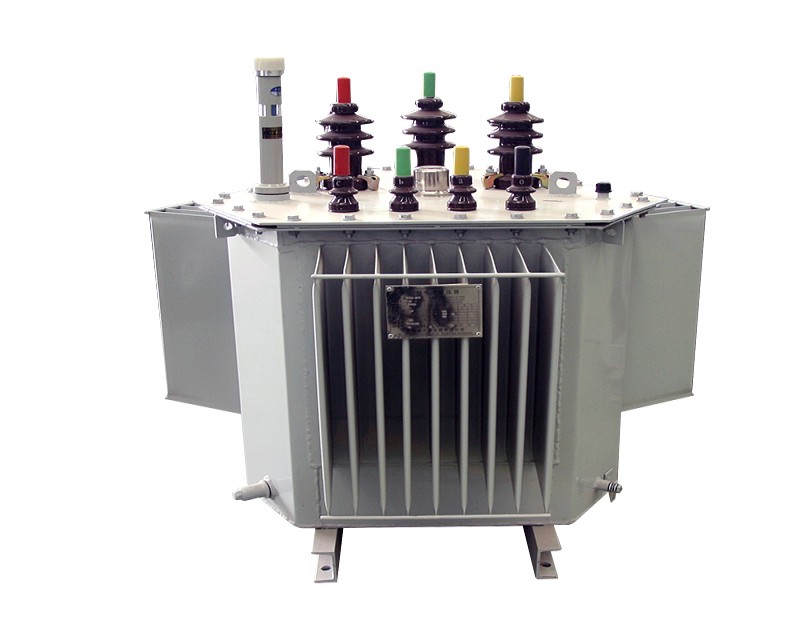

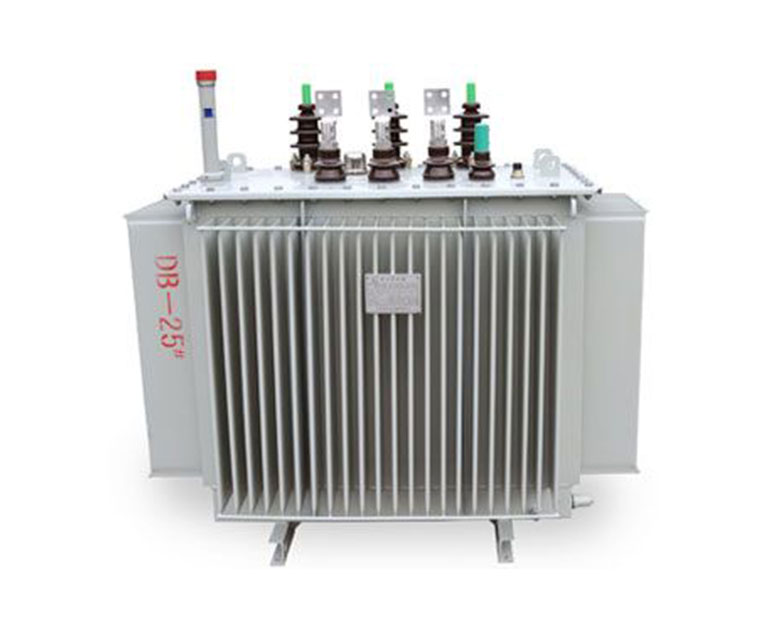

Product Real Shot
