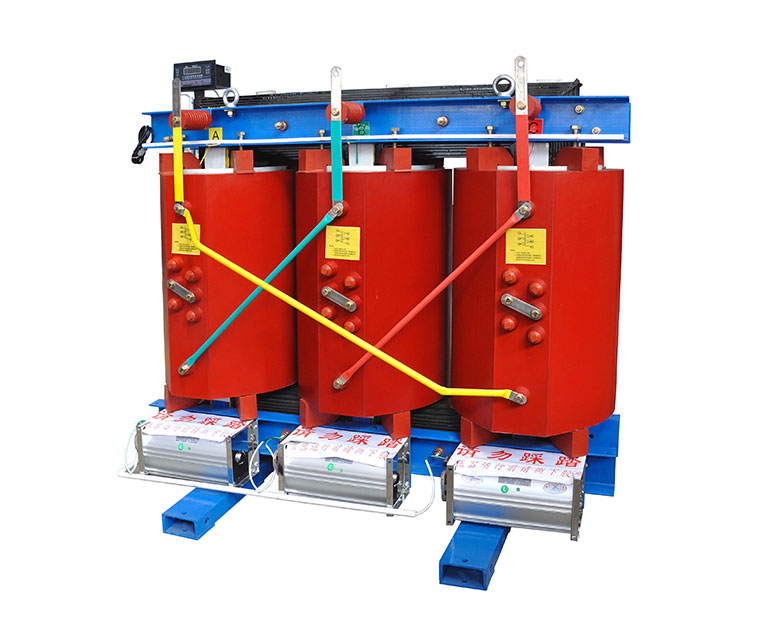

Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4

Brand Hengda

Model No. Amorphous Alloy Transformer SCB(H)15-30~2500/10/0.4

Phase 3 Phases

Vector Group/Connection Type Yyn0 or Dyn11

Tap Ranger ±5% or ±2*2.5%

Frequency 50HZ/60HZ

Coil Material Copper/Aluminum

Online Inquiry

Free local delivery
many years power supply warranty
Lifetime Customer Support

details

SCBH15 Amorphous alloy transformer is a low-loss and high-efficiency power transformer with iron-based amorphous metal as the iron core. It is an ideal low-loss energy-saving transformer at present with low temperature rise and stable running performance. A large number of this product into the network operation can achieve good energy-saving effect and can reduce the pollution of the atmosphere, especially suitable for the lack of computers and load fluctuations and difficult to carry out routine maintenance of the region.

SC(B)11-10kV Technical Specifications

Rated Power (kVA)	Voltage Combination			Vector Group/ Connection Method	No-Load Loss	Load Loss (120°C）	Short-circuit Impedance	No-load Current
Rated Power (kVA)	H.V(kV)	H.V. Tap Range(%)	L.V(kV)	Vector Group/ Connection Method	W	W	%	%
100	6 6.3 10 10.5 11	±5% or±2*2.5%	0.4	Dyn11	130	1570		1.2
125					150	1850		1.1
160					170	2130		1.1
200					200	2530		1
250					230	2760		1
315					280	3470		0.9
400					310	3990		0.8
500					360	4880		0.8
630					410	5960	6	0.7
800					480	6960		0.7
1000					550	8130		0.6
1250					650	9690		0.6
1600					760	11730		0.6
2000					1000	14450		0.5
2500					1200	17170		0.5
Operating Condition: 1.Altitude not exceeding 1000 meters 2.Maximum ambient temperature +40°C 3.Maximum daily average temperature +30°C 4.Maximum annual average temperature +20°C 5.Maximum low temperature-25°C 6.Transformers for operation under special conditions are available upon request.

Scope of application:

SCBH15 series amorphous alloy dry-type transformer can be used in high-rise buildings, commercial centre, subways, airports, stations, industrial and mining enterprises and power plants, especially suitable for flammable and explosive and fire prevention requirements of high places. Therefore, amorphous alloy dry-type transformer is the most ideal energy-saving power distribution equipment in indoor power supply network.

Features:

Amorphous alloy dry-type transformer biggest feature: no-load loss is one-third of the ordinary silicon steel sheet, energy saving effect is remarkable, the product reaches the national level energy efficiency standards.
Safety, flame retardant and fireproof, can be installed directly in the load centre.
Maintenance-free, easy to install, low comprehensive operating costs.
Good moisture-proof performance, can operate normally under 100 per cent humidity, and can be put into operation without drying after shutdown.
Low loss, low noise, strong heat dissipation ability.
